Raytemp 3 IR Thermometer

Calculate Shipping

Click & Collect - $0.00
142 Bocks Rd, Oakville NSW 2765

A non-contact infrared thermometer (NCIT) can be used to measure a horse's temperature on the forehead, neck, shoulder, and lateral thoracic rib cage:

Forehead: Hold the thermometer on the midline of the forehead, about 5 cm above a horizontal line that connects the medial canthus of each eye.
Neck: Place the thermometer in the center of the right side of the neck, about 12 cm from the base of the neck for adult horses and about 6 cm for foals.'
Shoulder: Take a measurement on the horse's left shoulder.
Lateral thoracic rib cage: Take a measurement on the horse's lateral thoracic rib cage.

A non-contact infrared thermometer can be a safer and more practical alternative to a rectal thermometer, especially if your horse doesn't tolerate the rectal thermometer.

To be used successfully, an average temperature must be taken over multiple sites, and the non-contact infrared thermometer needs to be used properly (ie. the correct distance from the horse and perpendicular to the skin, as per the specific instructions provided with the unit you have purchased). Readings may be affected by the length of the horse’s coat, whether or not the horse has been rugged, the ambient temperature, and whether or not the horse is in direct sunlight. As a result, this method may not be quite as accurate as a rectal thermometer, but will give a reasonable guide within the +/- tolerances indicated in the specifications, and is useful in identifying hotspots due to injury, inflammation or infection.

Assured accuracy of ±1°C over the range of 0 to 65°C

Temperature range -60 to 500°C

Simple push button operation

Compact, lightweight & easy to use

Supplied with a nylon carry pouch

Description

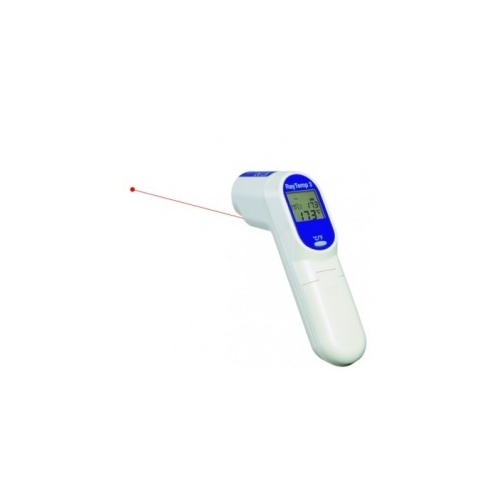

The RayTemp 3 Infrared Thermometer is ideal for use in non-contact applications. Simply aim and pull the trigger to display the temperature of the item being measured.
In addition the LCD will display the maximum temperature.
The RayTemp 3 infrared thermometer measures temperature over the range of -60 to 500°C with an assured accuracy of ±1°C over the range of 0 to 65°C, outside of this range ±2°C of reading in an ambient temperature of between 15°C and 25°C, with a repeatability of ±1°C of reading.

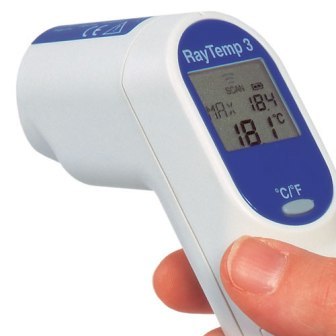

The Raytemp 3 incorporates a clear, easy to read, LCD display with low battery, laser and backlight indicators, and an auto power off facility that turns the instrument off after 15 seconds, maximising battery life.

The unit can be used by anyone as there is no need to focus or adjust the instrument.

Each RayTemp 3 features a single push button, allowing the user to select °C or °F.

The thermometer also incorporates laser assisted alignment as standard, to assist in pin-pointing the area of measurement.

The unit incorporates an 11:1 optic ratio (target distance/diameter ratio) and a fixed emissivity of 0.97

PLEASE NOTE: If express post delivery is required, then the batteries will be removed, due to Australia Post regulations. If you prefer the batteries to be supplied, then please select regular post or flat rate delivery by road.

Technical Data
Specification	RayTemp 3 Infrared Thermometer
Range	-60 to 500°C
Resolution	0.1°C or °F (-9.9 to 199.9°C) or 1°C
Infrared Accuracy	±1°C (0 to 65°C) or ±2°C
Field of view	target ratio 11:1
Emissivity	0.97 fixed
Battery Type	2 x 1.5 volt AAA
Battery Life	140 hours continuous use
Display	custom LCD
Dimensions	39 x 72 x 175mm
Weight	180 grams
